Zzr 400

Mensaje por Zee »

Zzr 400 junction box.where do i connect the green@and black wire that comes from the IC Ignitor
Avatar de Usuario
holleros
Moderador
Mensajes: 3457
Registrado: Mar Ene 26, 2010 9:17 pm
Motos: ZZR600, granate, 1990
Ciudad: Bizkaia

Re: Zzr 400

Mensaje por holleros »

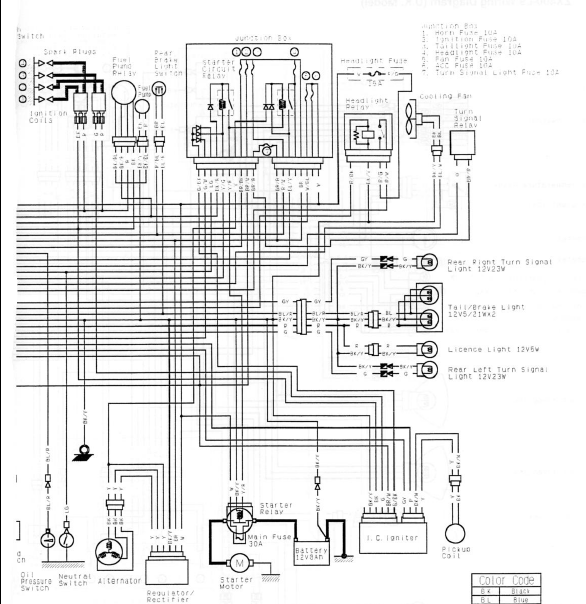

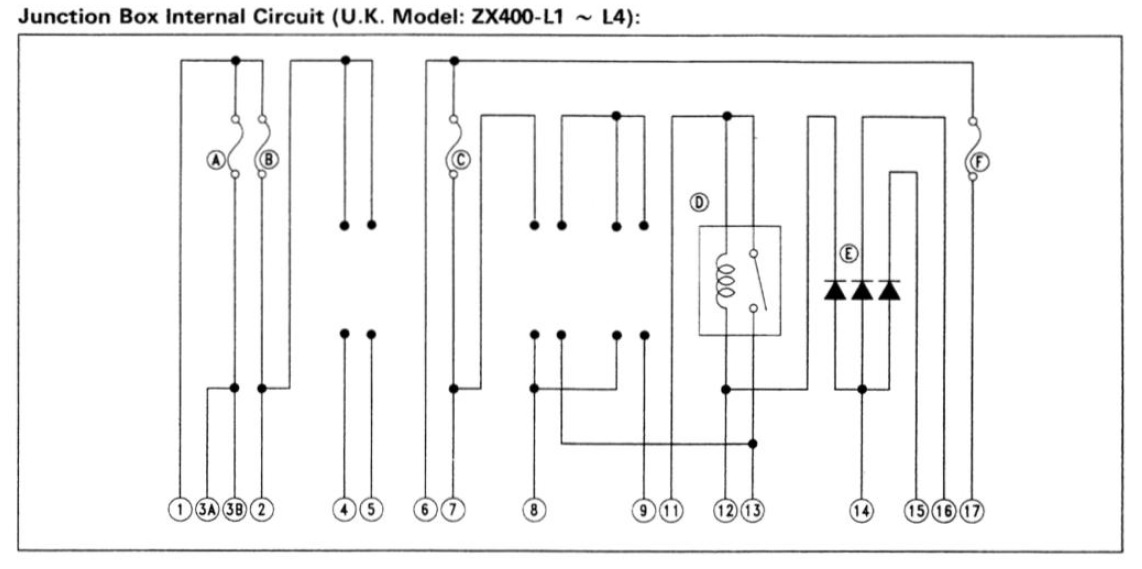

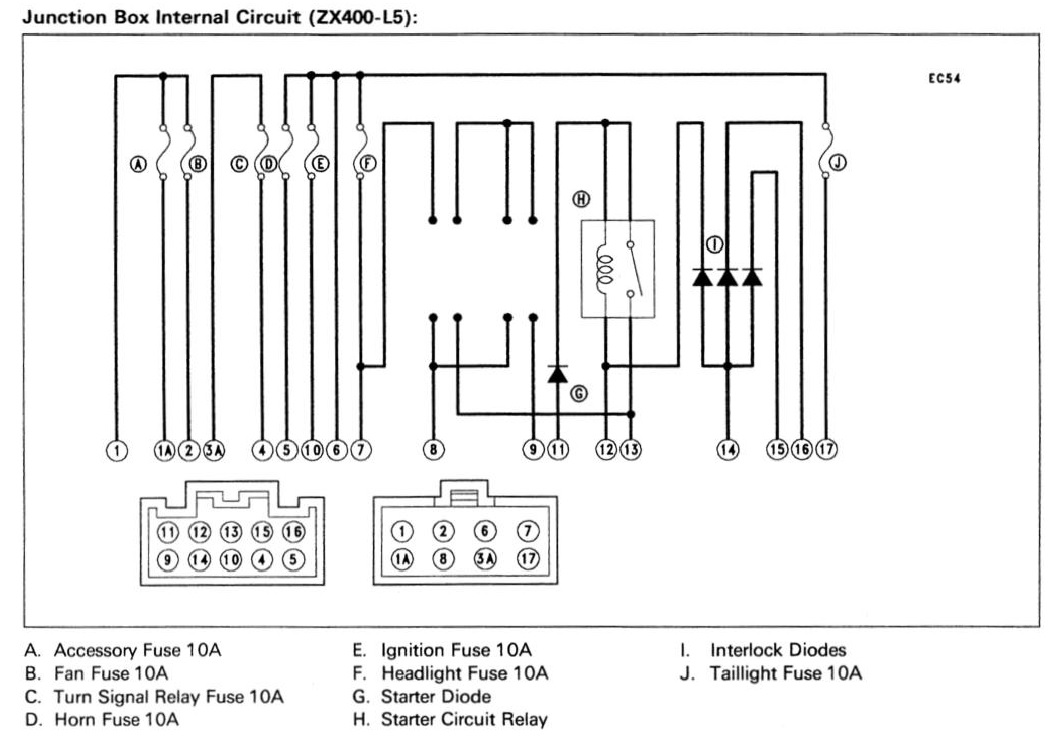

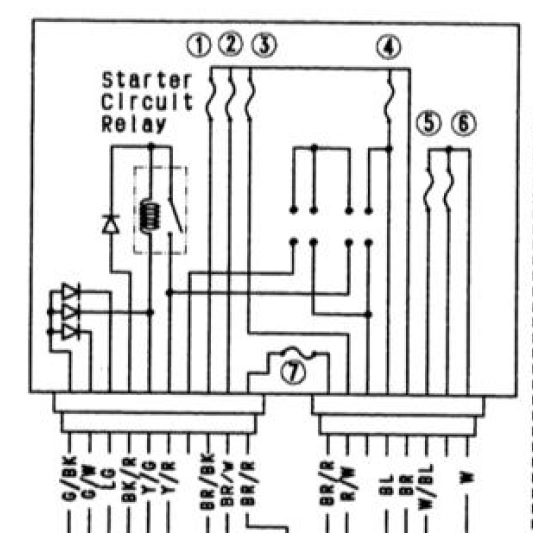

Welcome and I hope the attached pictures will help you.
The green/black cable goes to connection 14.
Regards

Imagen

Imagen

Imagen

Imagen

Imagen
Revista_Moto_Tecnica_90_92https://mega.nz/#!3EYmXaBK!ZDjcstMdsViIleQKMlFuvX7wFliNpYq2kqrwQAxCnA0
Haynes https://mega.nz/#!7VhRSKTA!C14flMyLzSa7E1ggAMTq-PwnrPI4_ywK_LcVC9PfHRg
Zee
Mensajes: 4
Registrado: Mié Ago 04, 2021 10:39 am
Motos: Motos
Ciudad: Ciudad

Re: Zzr 400

Mensaje por Zee »

Thank you 🙏.will setup the wires in a few.Is the Zxr 400 and Zzr 400 the same.
Zee
Mensajes: 4
Registrado: Mié Ago 04, 2021 10:39 am
Motos: Motos
Ciudad: Ciudad

Re: Zzr 400

Mensaje por Zee »

Hi ,I managed to connect the Black@green wire.now Im stucking with the yellow wire that comes from the alternator and the light green that is my neutral switch.
Avatar de Usuario
holleros
Moderador
Mensajes: 3457
Registrado: Mar Ene 26, 2010 9:17 pm
Motos: ZZR600, granate, 1990
Ciudad: Bizkaia

Re: Zzr 400

Mensaje por holleros »

Light green at 15 or 16, it doesn't matter.

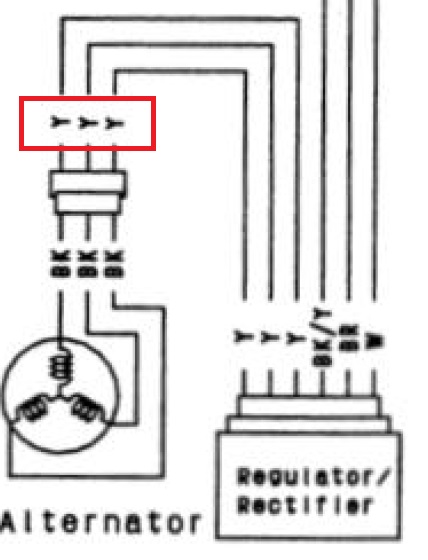

I don't understand the yellow wire coming out of the alternator. There are three yellow wires coming out of the alternator that go directly to the voltage regulator only.

Imagen
Revista_Moto_Tecnica_90_92https://mega.nz/#!3EYmXaBK!ZDjcstMdsViIleQKMlFuvX7wFliNpYq2kqrwQAxCnA0
Haynes https://mega.nz/#!7VhRSKTA!C14flMyLzSa7E1ggAMTq-PwnrPI4_ywK_LcVC9PfHRg
Zee
Mensajes: 4
Registrado: Mié Ago 04, 2021 10:39 am
Motos: Motos
Ciudad: Ciudad

Re: Zzr 400

Mensaje por Zee »

Hi ,thank you for your help . managed to connect all the wires. Appreciated 😎

The yellow wire joins one of those 3 yellow wires that goes to the alternator and that wire goes to the junction box
Avatar de Usuario
holleros
Moderador
Mensajes: 3457
Registrado: Mar Ene 26, 2010 9:17 pm
Motos: ZZR600, granate, 1990
Ciudad: Bizkaia

Re: Zzr 400

Mensaje por holleros »

I don't know what that cable is doing there.
As can be seen in the diagrams I know, no cable comes out of the alternator to the junction box. And I understand it even less, as it is a cable that would carry alternating current.
Revista_Moto_Tecnica_90_92https://mega.nz/#!3EYmXaBK!ZDjcstMdsViIleQKMlFuvX7wFliNpYq2kqrwQAxCnA0
Haynes https://mega.nz/#!7VhRSKTA!C14flMyLzSa7E1ggAMTq-PwnrPI4_ywK_LcVC9PfHRg
Avatar de Usuario
holleros
Moderador
Mensajes: 3457
Registrado: Mar Ene 26, 2010 9:17 pm
Motos: ZZR600, granate, 1990
Ciudad: Bizkaia

Re: Zzr 400

Mensaje por holleros »

Zee escribió: Jue Ago 05, 2021 11:34 am Hi ,thank you for your help . managed to connect all the wires. Appreciated 😎

The yellow wire joins one of those 3 yellow wires that goes to the alternator and that wire goes to the junction box

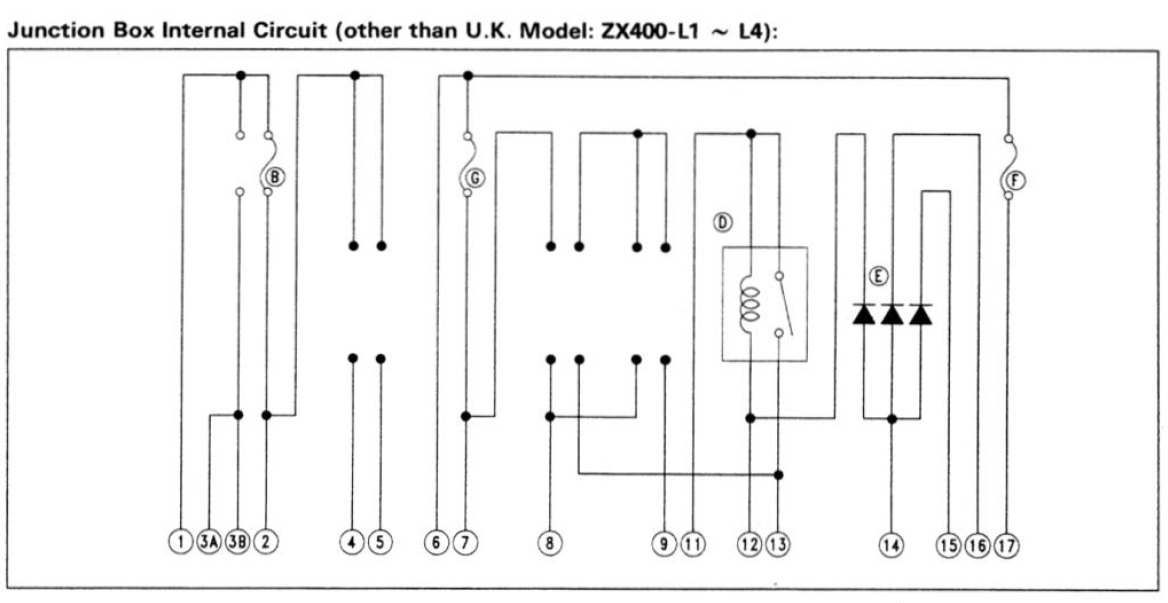

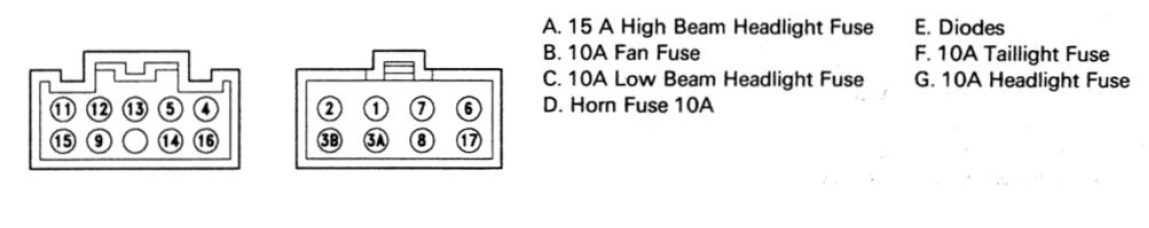

I have continued looking for information about the yellow wire that goes from the alternator to the junction box and I found that some models do have that connection as you indicate, but what I can't find is where it goes to in the junction box.
Sorry I don't have more information.

Imagen

Imagen

Imagen
